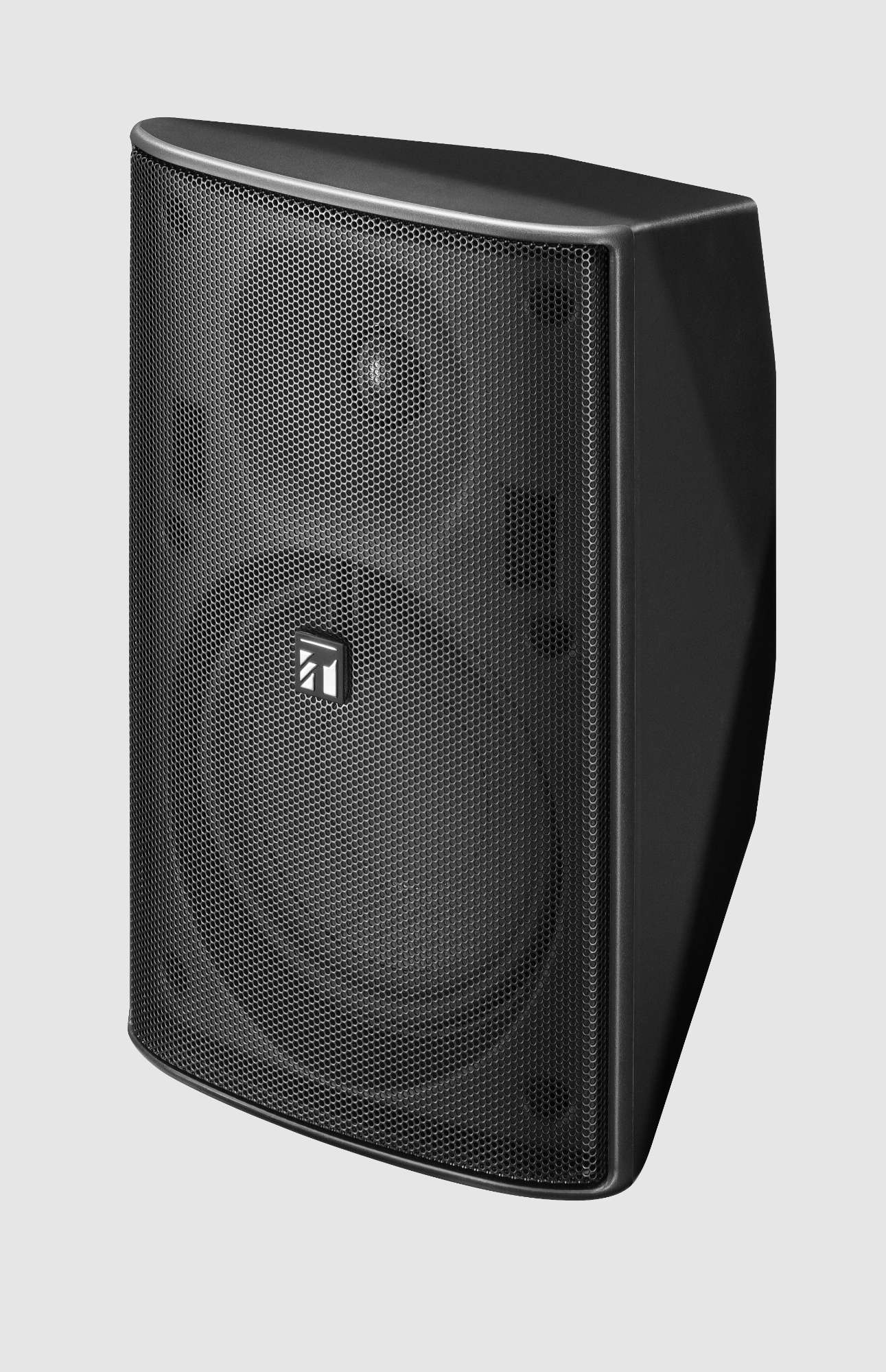

TOA Wide-Dispersion Box Speakers F-1300BT 30W Wide-Dispersion Speaker System F1300BT

SPECIFICATIONS

• Enclosure : Bass-reflex type
• Rated Input : 30 W (high impedance)
• Power Handling Capacity : Continuos pink noise: 50 W (low impedance)
• Continuos program: 150 W (low impedance)
• Rated Impedance : 8 Ω
• 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
• 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
• Sensitivity : 90 dB (1 W, 1 m) at installation in 1/2 free sound field
• Frequency Response : 80 Hz – 20 kHz, -10 dB at installation in 1/2 free sound field
• Crossover Frequency : 2 kHz
• Directivity Angle : Horizontal: 110゜, Vertical: 100゜
• Speaker Component : Low frequency: 13 cm (5″) cone-type
• High frequency: 25 mm (1″) dome tweeter
• Input Terminal : Push-in terminal
• Finish : Enclosure: HIPS, black
• Punched net: Surface-treated steel plate, black, paint
• Joint bracket, wall bracket: Steel plate, t1.6, black, paint
• Speaker bracket: Die-cast aluminum, black, paint
• Dimensions : 162 (W) × 250 (H) × 161 (D) mm (6.38″ × 9.84″ × 6.34″)
• Weight : 3.6 kg (7.94 lb) (including the supplied brackets)
