Package Includes
• 1 × TA-5240SE 240W 5 Zone Mixing Amplifier
• 8 × HK-709 30W Horn Speaker
• 1 × GPM-30/B Desktop Gooseneck Microphone

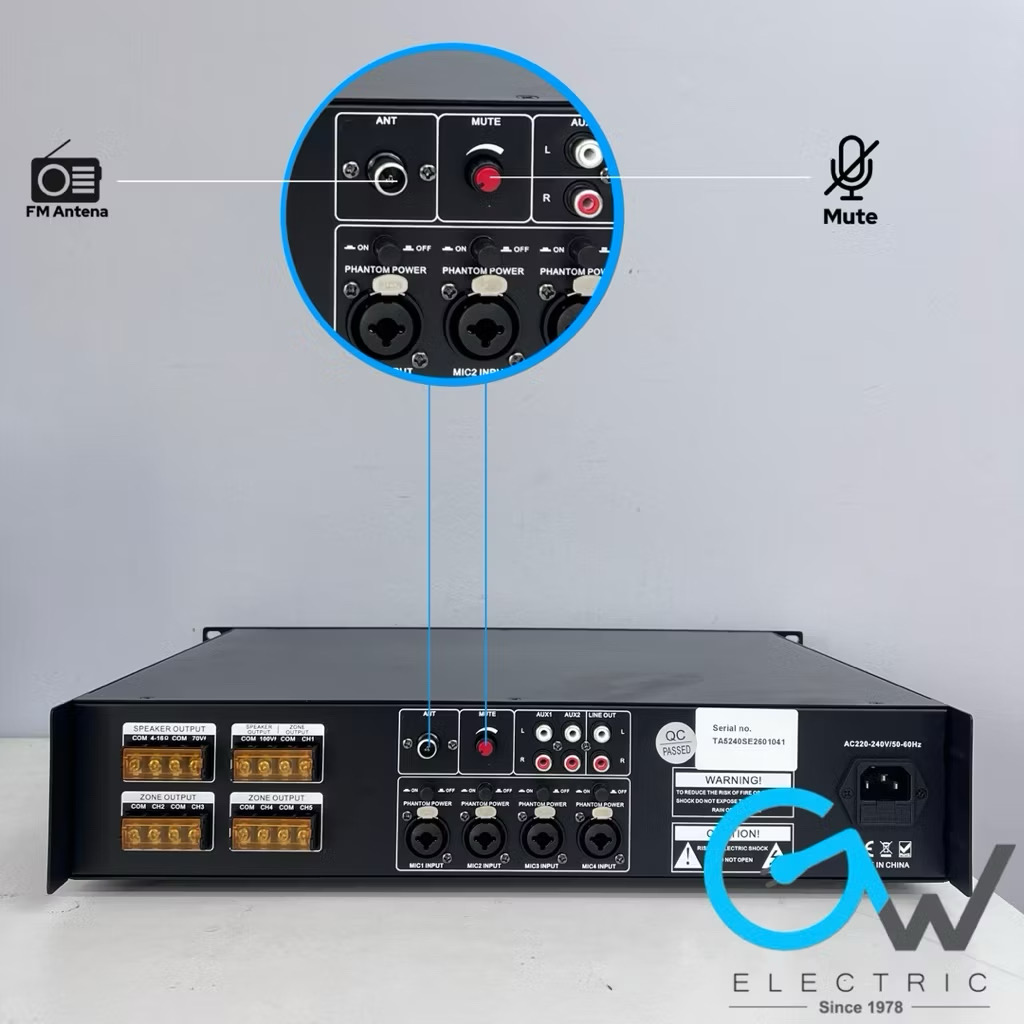

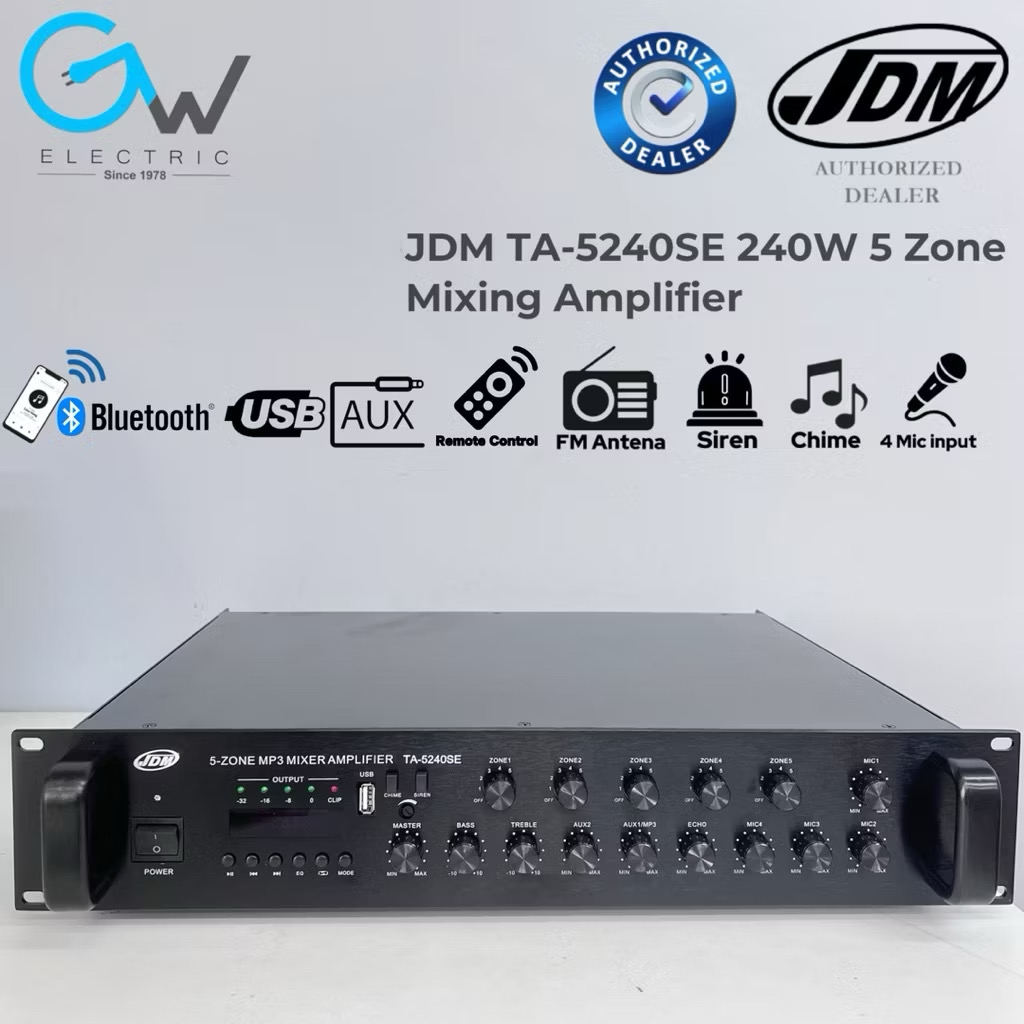

[Bluetooth] JDM TA-5240SE 240W 5 Zone Mixing Amplifier with Echo, Siren, Chime, 4 Microphone Input
FEATURES:
•Rate Output Power: 240W
• Output Mode: 4-16S2, 70V, 100V
•Microphone Input: Mic1 / Mic2 / Mic3: 600 ohms(22) 10-15
MV, Unbalanced
• Line Input: AUX1 / AUX2: 10K ohms (12) 150-470 MV,
Unbalanced
•Auxiliary Output: 0.775V (0 dB)
•Zone Control: 5 Partition Control Output (100V)
•Frequency Response: 60 hz ~ 15khz (‡ 3dB)
• Nonlinear Distortion thd: <0.5% at KHZ, 1 / 3 Rated Output
Power
• S / N: Line 85 dB, Mic:> 72 dB
•Tone Adjustment Range: Bass: 100Hz (= 10dB), Treble: 12kHz (‡10dB)
•Output Adjustment Rate: <3dB
•Cooling Mode: DC 12V Fan Cooling Mode
• Indicator Light: Power:” Power”, Level Display “2,4,6,8,10”
•Power Line: (3 x 0.75mm2) x 1.5m (Standard)
•Power Supply: AC 220V ‡ 10% 50-60Hz
•Protection: 6A
•Power Consumption: 396W
Specification：
• Rated Output Power: 240W
• Output Mode: 4–16Ω, 70V, 100V
• Microphone Input: Mic1 / Mic2 / Mic3: 600Ω 10–15mV, unbalanced
• Line Input: AUX1 / AUX2: 10kΩ 150–470mV, unbalanced
• Auxiliary Output: 0.775V (0 dB)
• Zone Control: 5 partition control output (100V)
• Frequency Response: 60Hz – 15kHz (±3dB)
• Total Harmonic Distortion (THD): <0.5% at 1kHz, 1/3 rated output power
• Signal-to-Noise Ratio (S/N): Line: 85dB, Mic: >72dB
• Tone Adjustment Range:
– Bass: 100Hz (±10dB)
– Treble: 12kHz (±10dB)
• Output Adjustment Rate: <3dB
• Cooling Mode: DC 12V fan forced air cooling
• Indicator Light: Power indicator, level display (2, 4, 6, 8, 10)
• Power Line: (3 × 0.75mm²) × 1.5m (standard)
• Power Supply: AC 220V ±10%, 50–60Hz
• Protection: 6A
• Power Consumption: 396W
• Machine Size: 89 (H) × 483 (W) × 366 (D) mm
• Net Weight: 13.58 kg

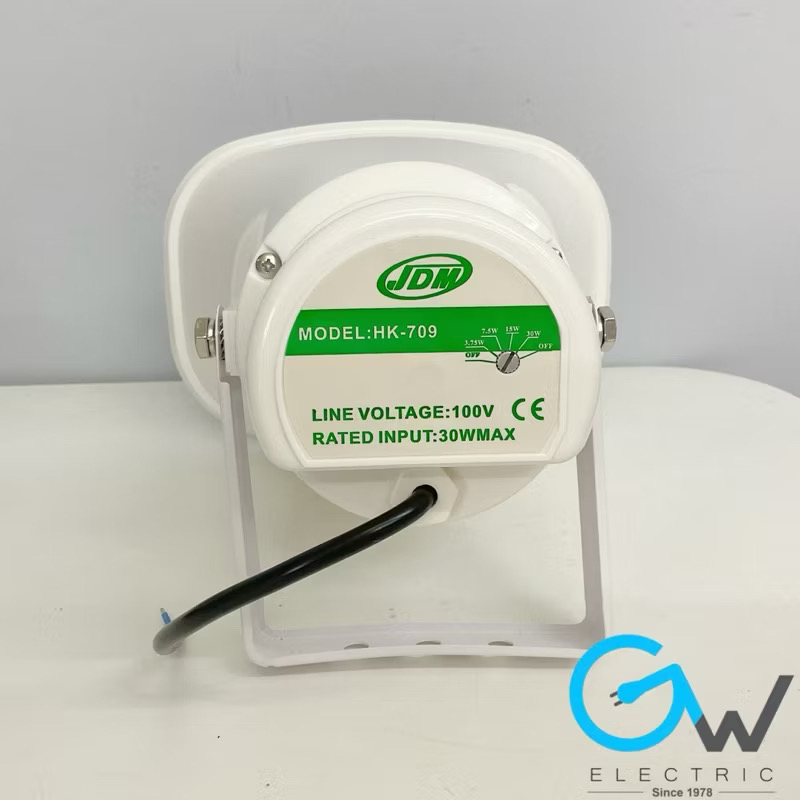

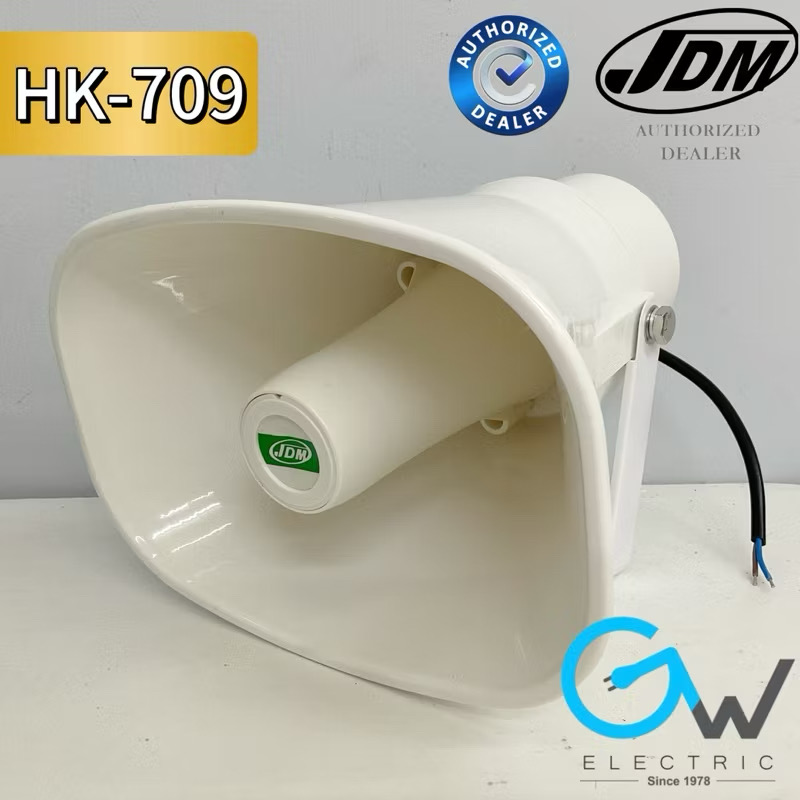

JDM HK-709 3.75W, 7.5W, 15W, 30W Adjustable 100V Line Horn Speaker
Product Details:
•Rated Power: 3.75/ 7.5/ 15/ 30 Watt
• Line voltage: 70V/100V
• Loudspeaker: 48/103mm
•Material: ABS
• Dimension: 220X65X240mm
• Weight (kg): 1.4kg

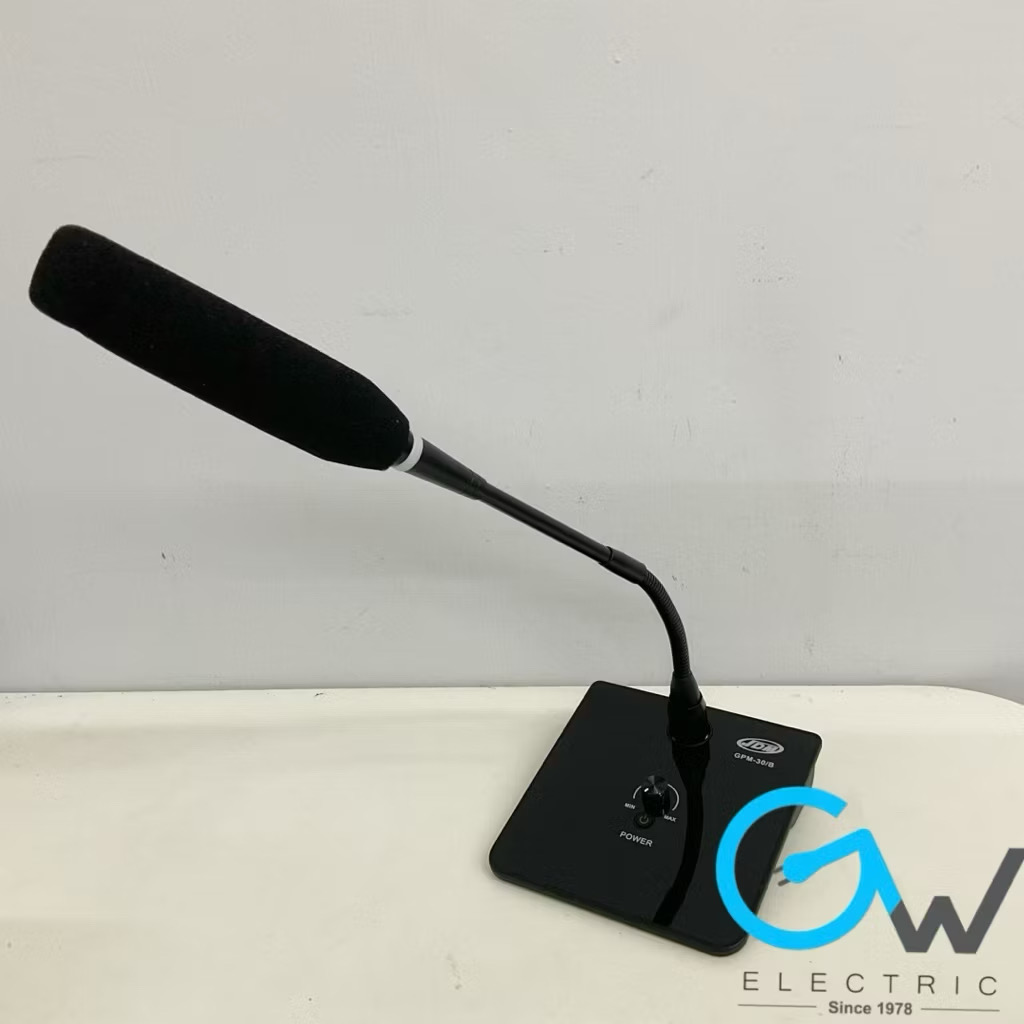

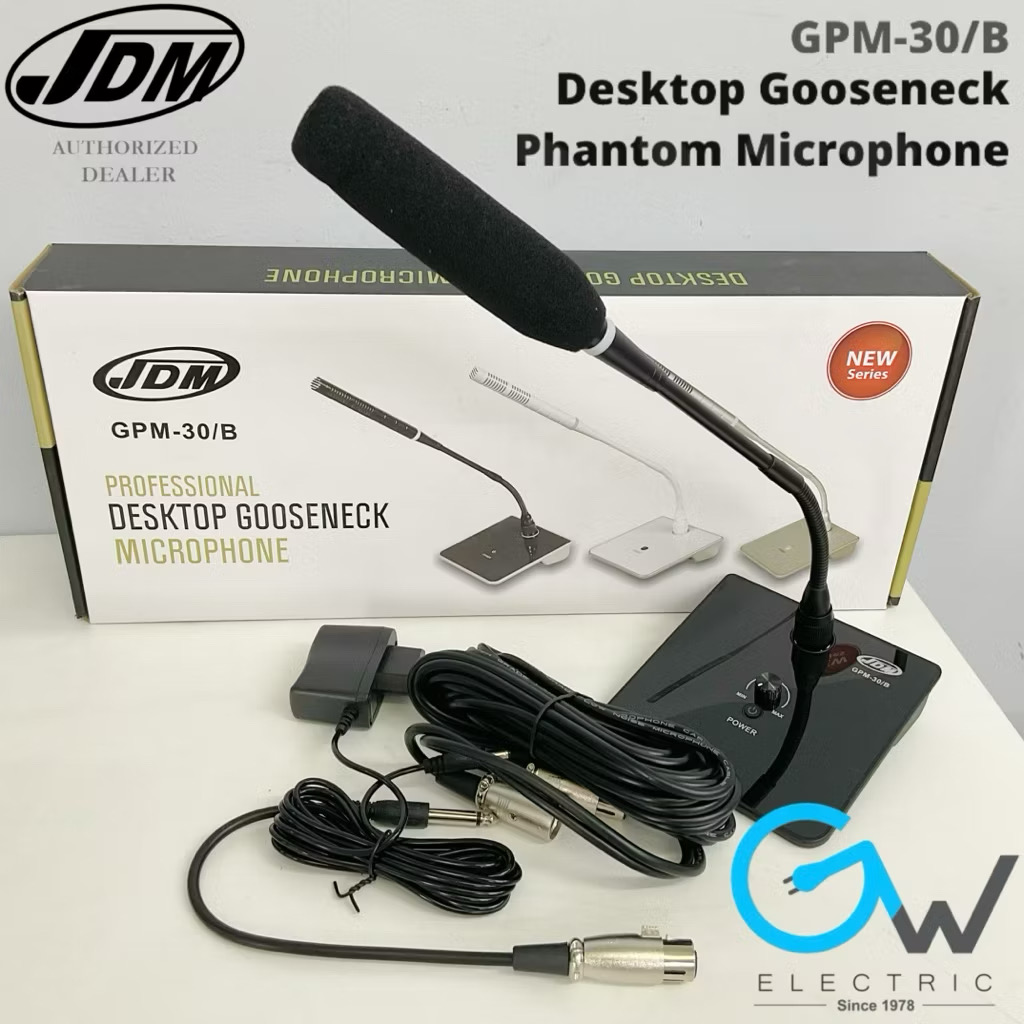

[Phantom Power 48V] JDM GPM-30B Desktop Gooseneck Microphone Conference Mic (No Chime)
FEATURES：
• Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum.
• Electronic touch switch with LED on/off indicator
• New brighter LED improves visibility under strong ambient lighting
• Multiple power supply mode
• New sleek modern design, surface resistant to scratch
• Suitable for conference, broadcasting speech and PC use
Specification
• Transducer Principle: Back Electret Condenser (Φ 9.7mm × 5.0mm)
• Polar Pattern: Supercardioid
• Audio Output: Balanced Output, XLR (5m cable)
• Sensitivity: -40dB ± 3dB (F=1KHz, SPL=1Pa, 0dB=1V/Pa)
• Output Impedance: 160Ω ± 20%
• Maximum SPL: 105dB (F=1KHz, THD < 5%)
• Maximum Output: 250mV / 1.35mA (-68 ± 2 dBm)
• Power Supply:
– GPM-30B: Battery / Phantom Power / AC
– GPM-36C/B: Battery / AC
• Indicator: Base Indicator / Mic LED
• Base Dimension (L×W×H): 129 × 122 × 422 mm
• Microphone Length: 390 mm
• Switch: Electronic Touch Switch (with LED)
• Frequency Response: 50Hz – 16kHz
